DC Miniature Circuit Breaker
1P is $1.50~$2.00/Unit
2P is $3.00~$4.00/Unit
3P is $4.50~$6.00/Unit
4P is $6.00~$8.00/Unit
Company Information
Test Report and Certificate
Application
SRIZOU DC Miniature Circuit Breaker are mainly used in photovoltaic,energy storage and other DC systems that need to be interrupted and protected when over-current or short-circuit occurs.
It is in conformity with IEC60898 IEC60947-2 standard.

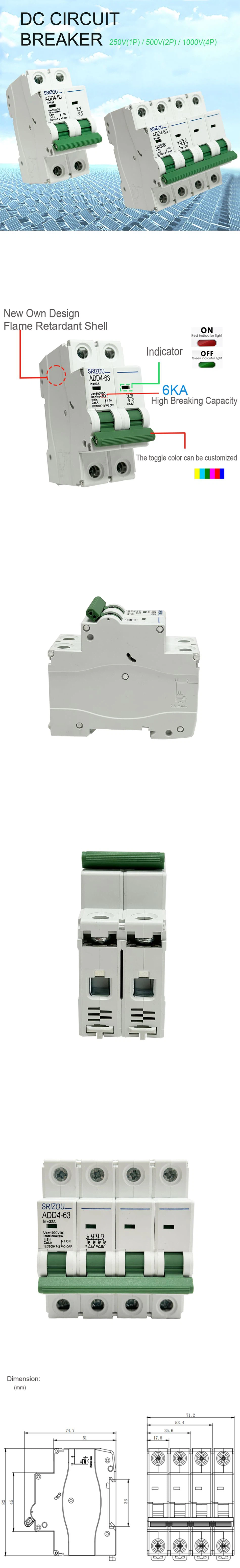

Product Details
Product Parameters
|
Product Name |
DC Miniature Circuit Breaker |
|
|
Brand |
SRIZOU |
|
|
Model |
ADD4-63 |
|
|
Rated Voltage |
VAC |
250V DC(1P) / 500V DC(2P) / 1000V DC(4P) |
|
Poles |
P |
1P, 2P,4P |
|
Rated Current |
A |
6A,10A,13A,16A,20A,25A,32A,40A,50A,63A |
|
Rated Frequency |
50/60Hz |
|
|
Rated breaking capacity |
6 KA |
|
|
For mounting on |
Din rail 35mm |
|
|
Degree of Protection |
20IP |
|
|
Electrical Endurance Cycle |
4000Times |
|
|
Mechanical Endurance Cycle |
10000Times |
|
|
Operating Temperature |
℃ |
'-25… +80 |
Packing & Shipping

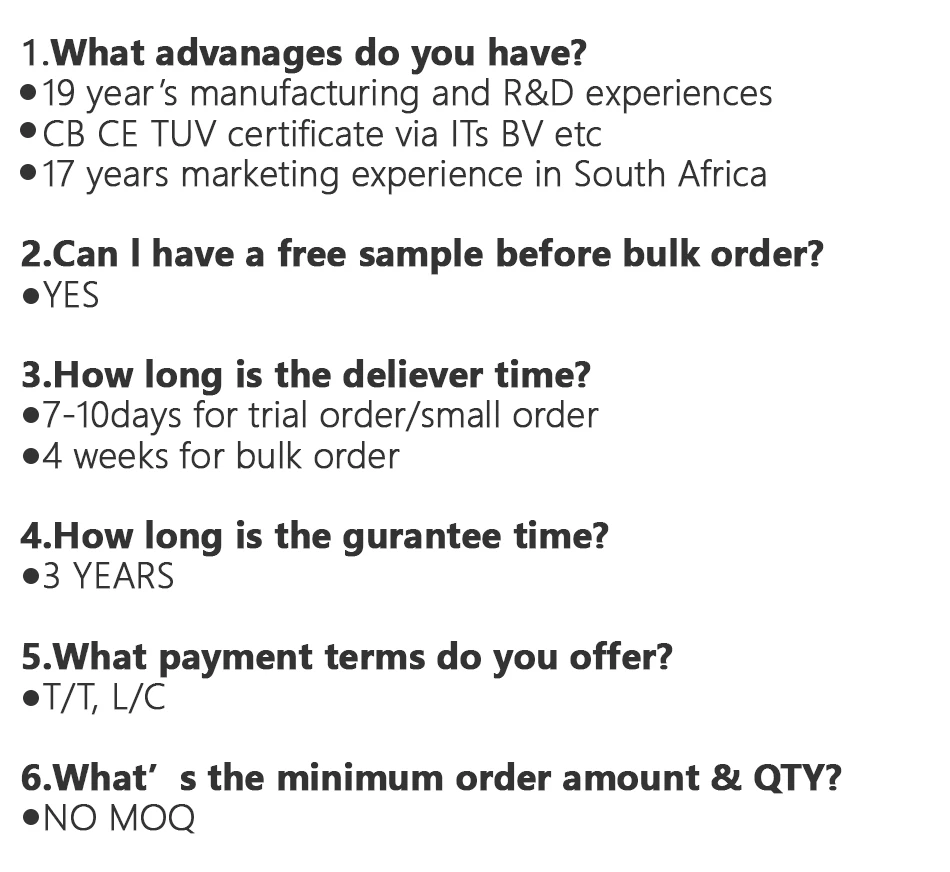

FAQ
