Mc4 Connectors for Solar Panels Male and Female
$0.18~0.25/SET
Company Information
Test Report and Certificate
Application

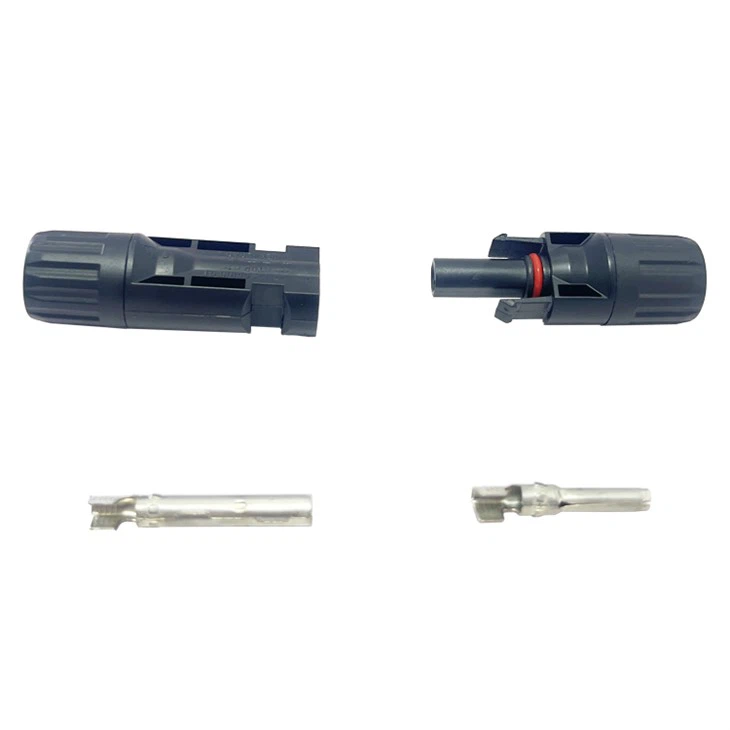

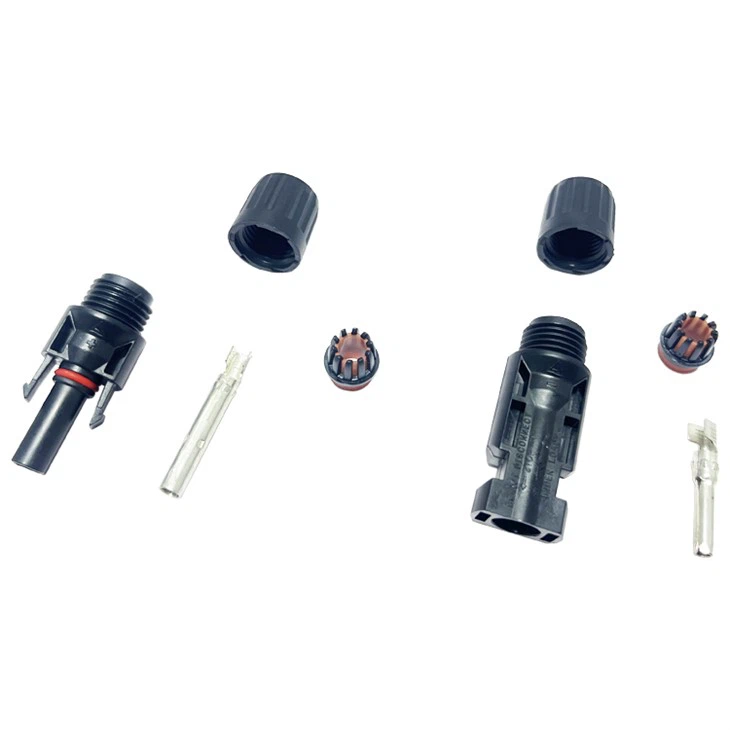

SRIZOU MC4 connectors for solar panels male and female stands for "Multi-Contact, 4 millimeters". These connectors have a single contact point and are common in attaching solar panels. These conductors are paired as Male and Female and are designed to be UV-proof and weather-resistant. That way, they can provide a secure connection to the outdoor installations.
Product Details
Product Parameters
|
Product Name |
MC4 Connectors for solar panels male and female |
|
|
Brand |
SRIZOU |
|
|
Connector Systerm |
φ4mm |
|
|
Rated Voltage |
V |
1000V DC |
|
Rated Current |
A |
30A(4mm²;6mm²;12AWG,10AQG) |
|
Test Voltage |
V |
6kV(50Hz, 1min) |
|
Shell material |
PPO insulation |
|
|
Inner core material： |
copper(thickness:0.4mm),Tin-plated |
|
|
Protection degree |
IP67 |
|
|
Flame rating |
UL94-V0 |
|
|
Contact resistance of plug connector |
0.5mΩ |
|
|
Safety Class |
II |
|
|
Ambient Temperature |
℃ |
'-40… +90℃(IEC) |
