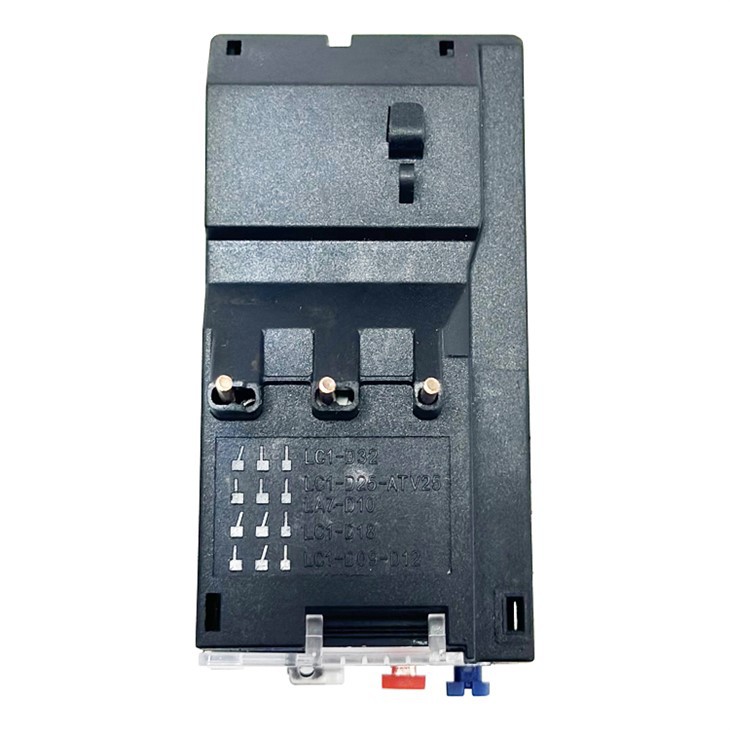

Thermal Over LOad Relay LR2
$2.50~$8.50/Unit
Company Information
Test Report and Certificate
Application
SRIZOU thermal over load relay LR2 are economic electromechanical protection devices 230~240V for visual indication and signaling. In combination with contactors, they provide reliable protection against overloads and phase failures for motors.
Product Details
Product Parameters
|
Product Name |
Thermal Over Load Relay LR2 |
|
|
Brand |
SRIZOU |
|
|
Rated insulation voltage |
VAC |
660 |
|
Frequency |
Hz |
50/60 |
|
Rated working current |
A |
25A,36A,93A,140A |
|
Installation method |
Plug-in, free standing |
|
|
Number of auxiliary contact |
1NO+1NC |
|
|
Model |
Rated working current |
Code |
Thermal component |
For contactor |
|
|
Rated Current |
Setting range |
||||
|
LR2-25 |
25A |
LR2-25 -0.16 |
0.16 |
0.10-0.16 |
CJX2-09~32 |
|
LR2-25 -0.25 |
0.25 |
0.16-0.25 |
|||
|
LR2-25 -0.4 |
0.4 |
0.25-0.40 |
|||
|
LR2-25 -0.63 |
0.63 |
0.40-0.63 |
|||
|
LR2-25 1.0 |
1 |
0.63-1.0 |
|||
|
LR2-25 1.6 |
1.6 |
1.0-1.6 |
|||
|
LR2-25 2.5 |
2.5 |
1.6-2.5 |
|||
|
LR2-25 4.0 |
4 |
2.5-4.0 |
|||
|
LR2-25 6.0 |
6 |
4.0-6.0 |
|||
|
LR2-25 8.0 |
8 |
5.5-8.0 |
|||
|
LR2-25 10 |
10 |
7.0-10.0 |
|||
|
LR2-25 13 |
13 |
9.0-13.0 |
|||
|
LR2-25 18 |
18 |
12.0-18.0 |
|||
|
LR2-25 25 |
25 |
17.0-25.0 |
|||
|
LR2-36 |
36A |
LR2-36 32 |
32 |
23.0-32.0 |
CJX2-32 |
|
LR2-36 36 |
36 |
28.0-36.0 |
|||
|
LR2-93 |
93A |
LR2-93 32 |
32 |
23.0-32.0 |
CJX2-40~95 |
|
LR2-93 40 |
40 |
30.0-40.0 |
|||
|
LR2-93 50 |
50 |
37.0-50.0 |
|||
|
LR2-93 65 |
65 |
48.0-65.0 |
|||
|
LR2-93 70 |
70 |
55.0-70.0 |
|||
|
LR2-93 80 |
80 |
63.0-80.0 |
|||
|
LR2-93 93 |
93 |
80.0-93.0 |
|||
|
LR2-140 |
140 |
LR2-140 104 |
104 |
80.0-104.0 |
CJX2-F115~F150 |
|
LR2-140 120 |
120 |
95.0-120.0 |
|||
|
LR2-140 140 |
140 |
110.0-140.0 |
|||
