Three Phase Kwh Meter
$24~$33/Unit
Company Information
Test Report and Certificate
Application
The three phase kwh meter is used in three phase four wire/ three phase three wire/ two phase three wire power grid. The meter is designed to measure AC active energy.
All of its functions comply with the relative technical requirement for class 1 three phase watt hour meter in IEC62053-21.
It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume.

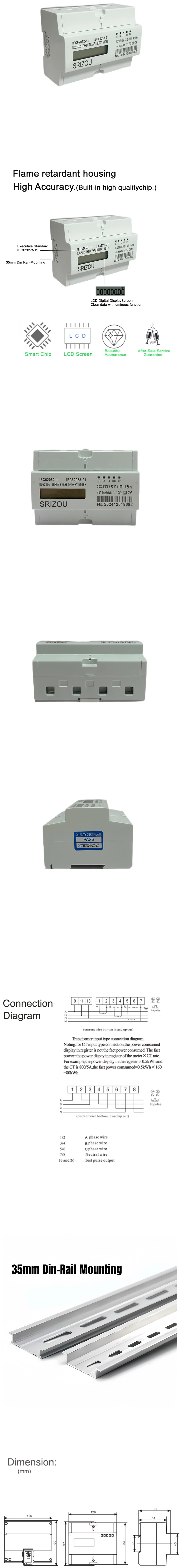

Product Details
Product Parameters
|
Product Name |
Three Phase Kwh Meter |
|
|
Model |
DDS238-3 |
|
|
Brand |
SRIZOU |
|
|
Rated Voltage |
V |
three phase four wire 3x120/208V, 3x220/400V, |
|
Working voltage range |
0.8~1.2Un |
|
|
Rate Current |
A |
5A/CT, 1.5(6)A, 5(60)A, 10(100)A, or other as required |
|
Frequency |
Hz |
AC 50~60Hz |
|
Connection Mode |
CT type or Direct type |
|
|
Power consumption |
<0.5W/5VA each phase |
|
|
Power Reserve |
150 hours with battery |
|
|
Start current |
0.004Ib |
|
|
Constant |
400~6400 imp/kWh |
|
|
AC voltage withstand |
4000V/25mA for 60 sec |
|
|
Accuracy |
Class 1 |
|
|
Display |
LCD |
|
|
Warm up time |
10S |
|
|
Mounting |
DIN rail mounting, DIN 35mm |
|
|
Work temperature |
-20… +50 |
|
