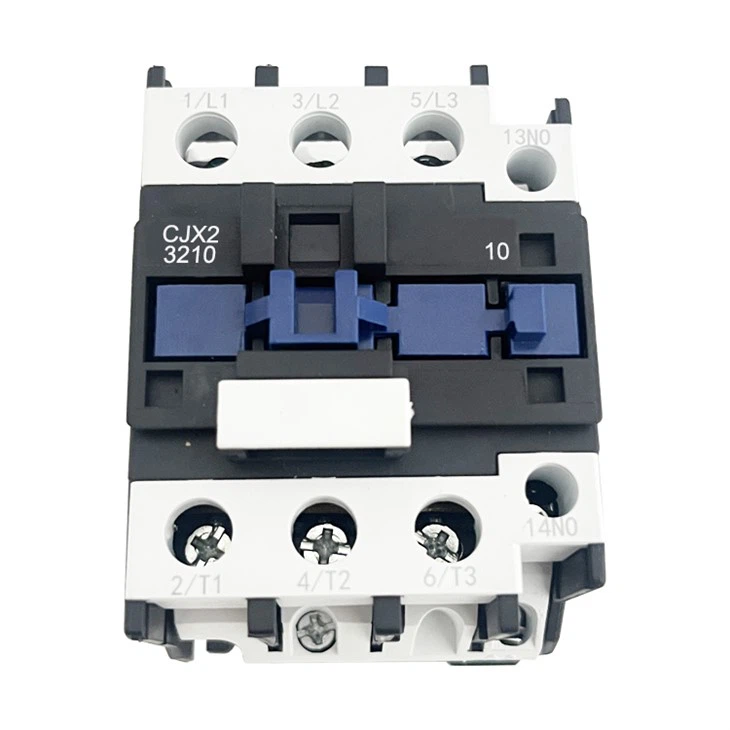

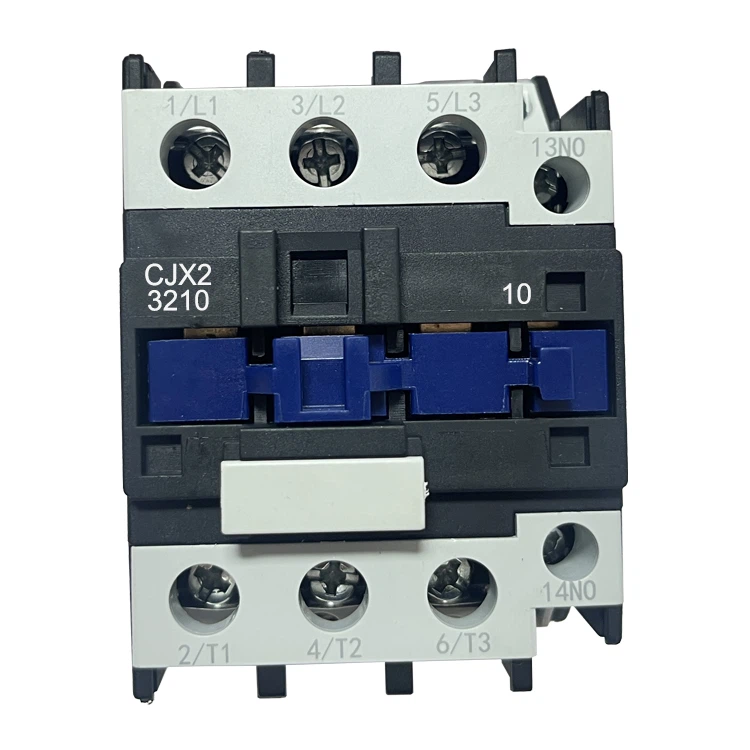

Cjx2 3210
$3.5~$4.8/Unit
Company Information
Test Report and Certificate
Application
SRIZOU cjx2 3210 is mainly used in circuits of AC50/60Hz, voltage up to 660V, its rated heating current is 50A. For long-distance switching on/off the circuits and frequent start-up and control of AC motor. And cjx2 3210 can be combined with appropriate thermal relay to constitute electromagnetic starter, in order to protect circuits that may subject to operating overload.
-It is in conformity with IEC 60947-4 standard.
Product Details
Product Parameters
|
Product Name |
cjx2 3210 |
|
|
Model |
CJX2-3210 |
|
|
Brand |
SRIZOU |
|
|
Rated Insulation Voltage |
660V AC |
|
|
Rated Heating Current |
A |
50A |
|
Rated Working Current(A) 380V/400V |
AC3 |
32 |
|
AC4 |
12 |
|
|
Standard Power Rating Of 3-Phase Motors 50/60Hz In AC-3(kW) |
220/230V |
7.5 |
|
380/400V |
15 |
|
|
660/690V |
18.5 |
|
Packing & Shipping
