Single Phase Isolator Switch
1P is $0.88~$1.29/Unit
Company Information
Test Report and Certificate
Application
SRIZOU single phase isolator switch is applied to switch on and off the circuit of terminal boxes,or control motors, electrical apparatus, and lighting systems. It is in conformity with IEC 60947-3 standard.
Product Details
Product Parameters
|
Product Name |
Single Phase Isolator Switch |
|
|
Model |
ADH1-100 |
|
|
Brand |
SRIZOU |
|
|
Rated Operational Voltage |
VAC |
230V |
|
Poles |
P |
Single phase |
|
Rated Current |
A |
32, 63, 100A |
|
Rated frequency |
Hz |
50/60 |
|
Rated impulse withstand voltage Uimp |
kV |
6 |
|
Degree of Protection |
IP |
20 |
|
Utilization Category |
/ |
AC-22A |
|
Rated short-time withstand current Icw |
A |
1200A, 1s |
|
Rated short-time making capacity Icm |
A |
2000 |
|
Electrical Endurance Cycle |
Times |
4000 |
|
Mechanical Endurance Cycle |
Times |
10000 |
|
Operating Temperature |
℃ |
'-25… +60 |
Packing & Shipping

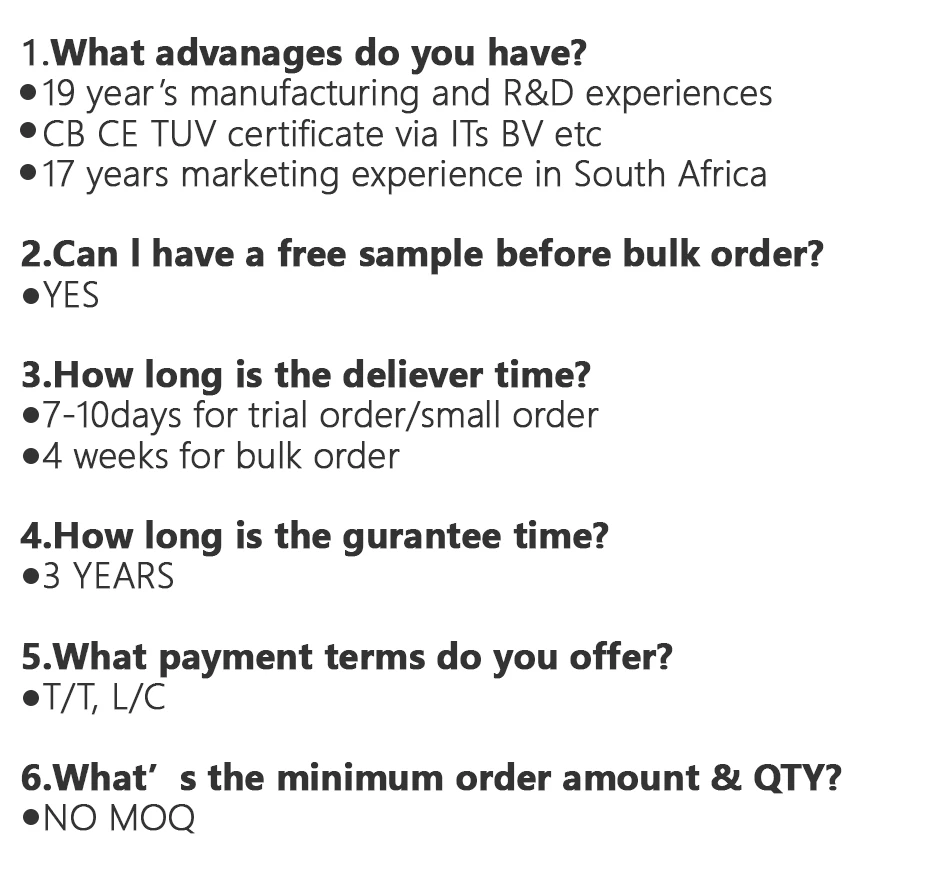

FAQ
